Tooling Spotlight: Bevel Cutterheads

back to overview

In our tooling spotlight, we break down what you need to know about our most effective tooling solutions. This MVP is the Leitz variable angle bevel cutters.

The Tool:

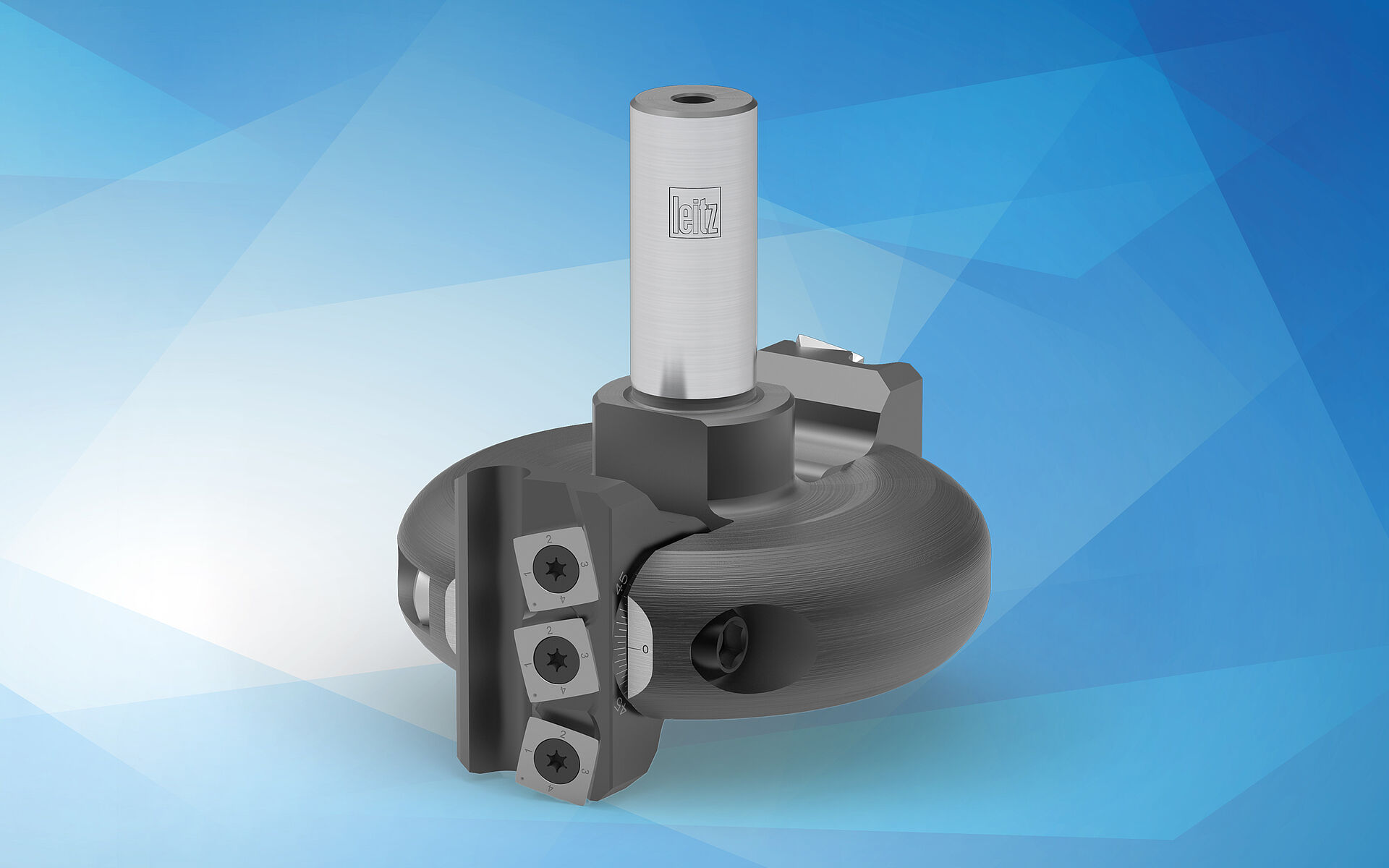

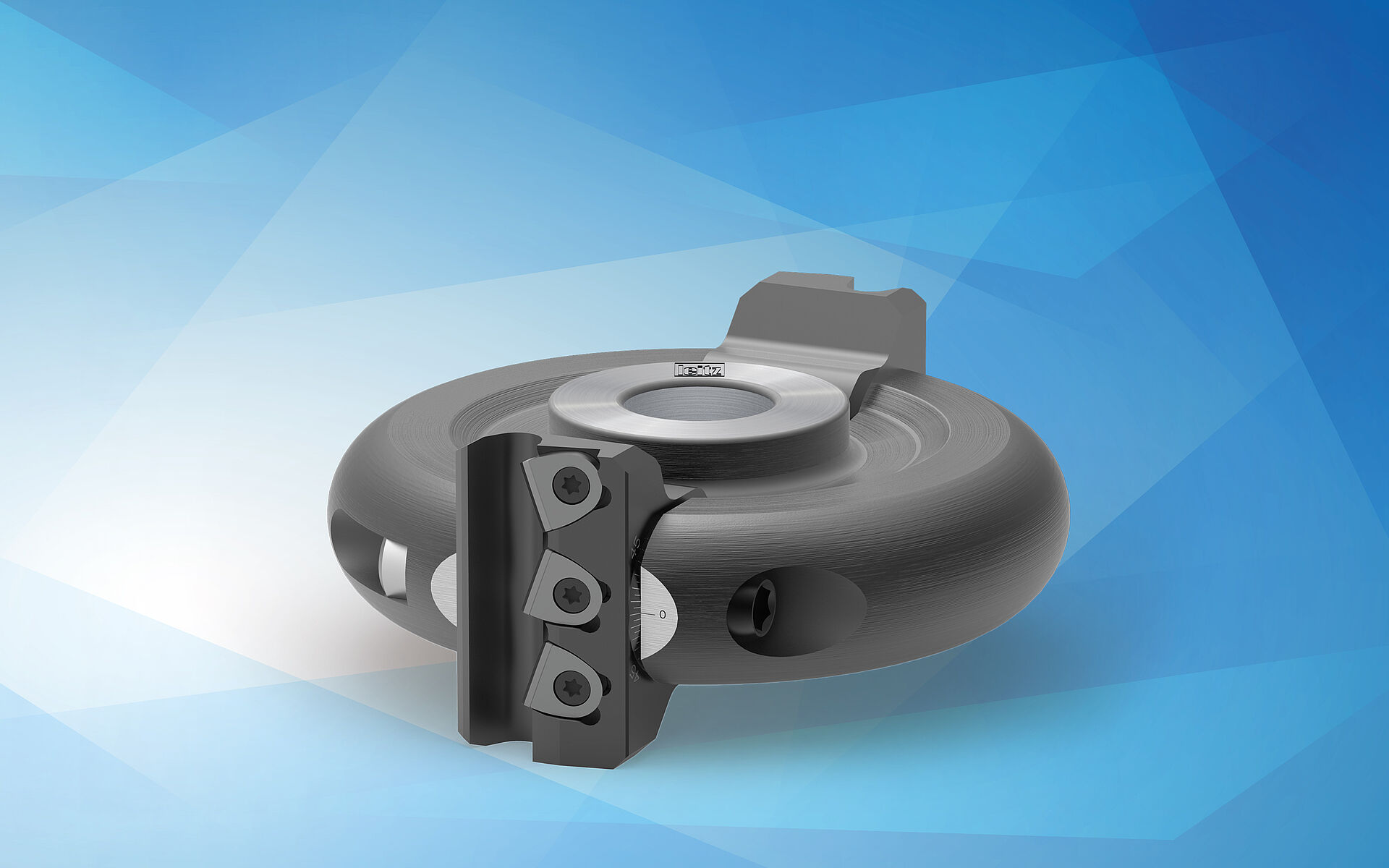

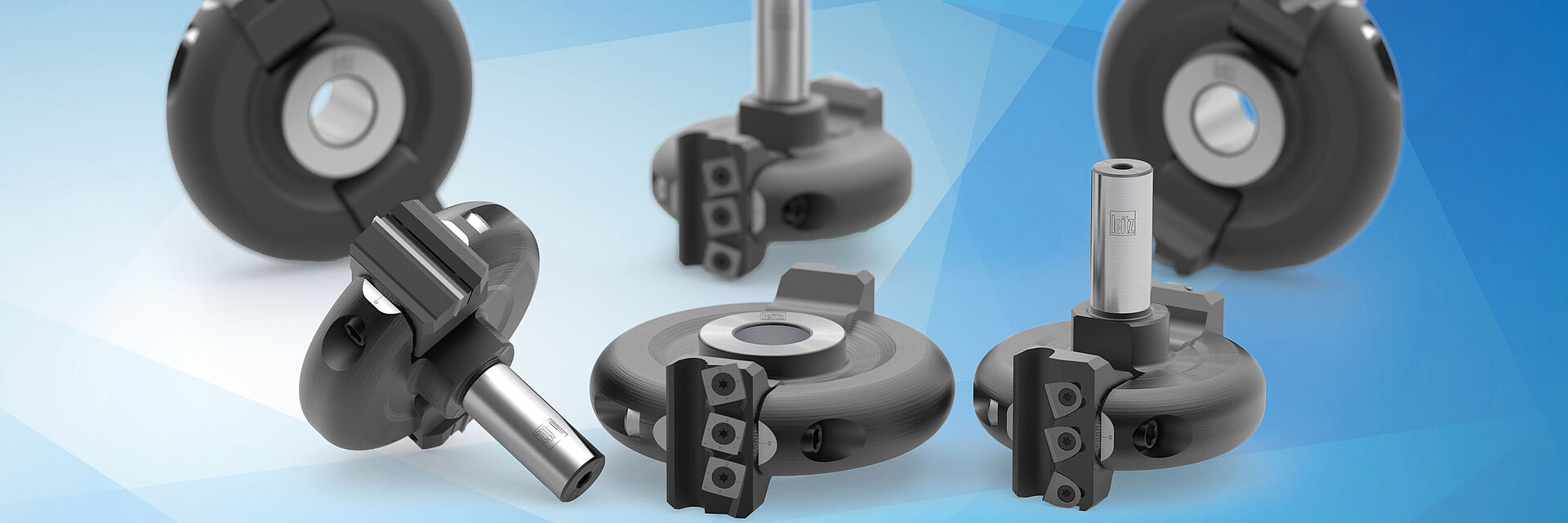

Leitz variable angle bevel cutters represent the next generation of flexible high-performance tooling solutions. Featuring field-replaceable PCD tips or shear-set radial inserts, Leitz variable angle bevel cutters provide infinite angular cutting possibilities in natural woods and highly abrasive manmade materials.

What makes it better:

The Leitz bevel cutterhead system offers individual advantages for every potential application and thus helps to achieve a clear production and quality superiority. The system is not only flexible and sustainable but also improves production efficiency.

When to use it:

Leitz variable angle bevel cutters offer unmatched flexibility. Suitable for various materials from solid wood to wood-derived materials and plastics. They can be used on machines for manual feed, throughfeed machines, and CNC machining centers.

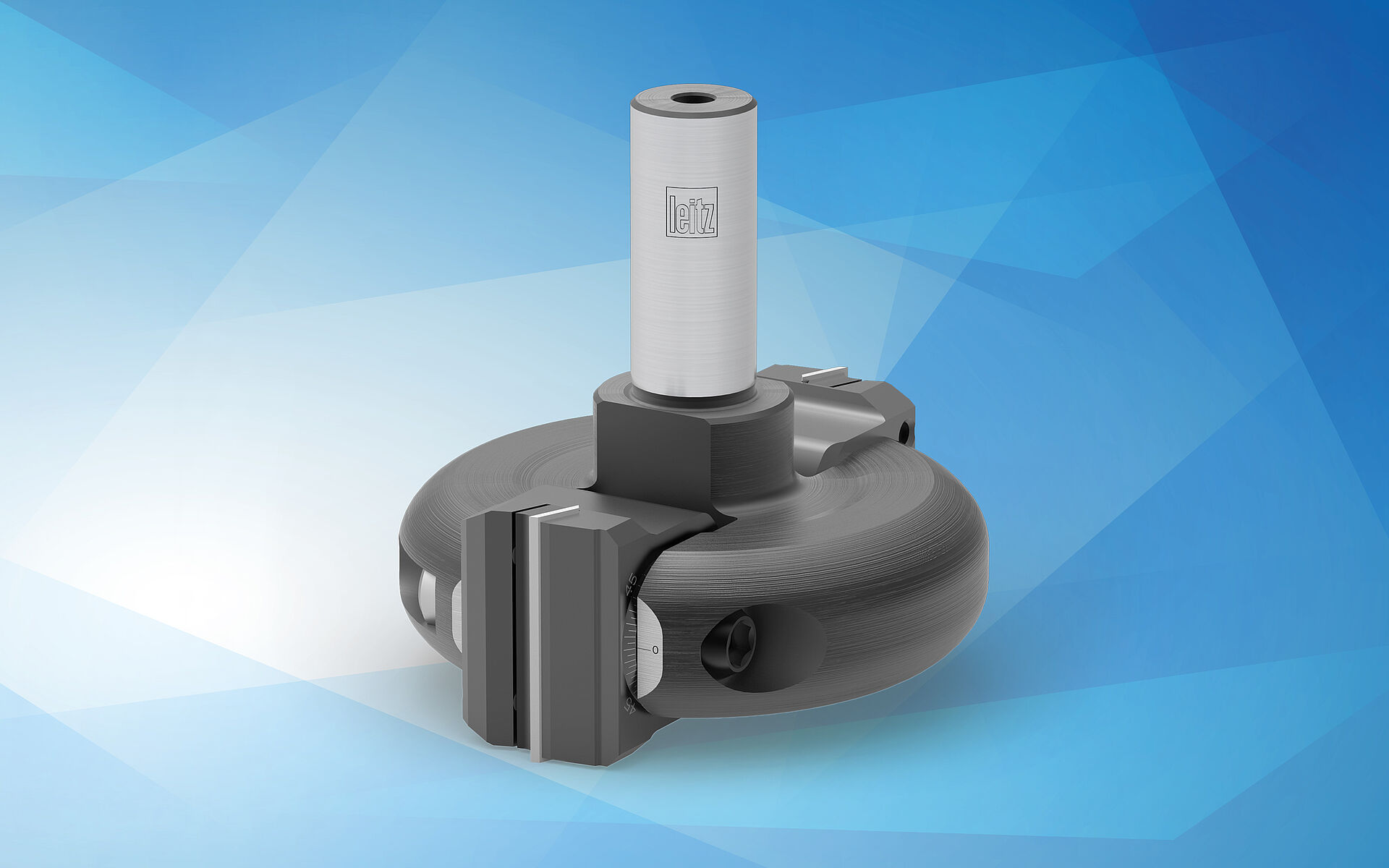

Turnblade knife system – Traditional standard straight-knife version for use in all applications.

HeliCut knife system – 4-sided, radius face inserts, shear-set with compression, provide particularly good cutting quality and excellent value in solid woods.

WhisperCut knife system – Replaceable (sharpen-able) shear-set PCD tips with compression provide excellent performance in abrasive materials.

The results:

Adjustable variable angle bevel cutters consolidate the need for various cutters set to exact angles.
Replaceable PCD or micro-grain inserts provide an economic solution for processing all material while maintaining exact tool tolerances.
Precisely adjustable cut angles ensure minimum machine downtime and first-piece perfection.
Up to a 40% time saving through newly designed adjustment mechanism.
